Overview

In this guide you will deploy a production-ready Traefik Reverse Proxy Lets Encrypt HTTP/3 on Linux.
Traefik will terminate TLS using Let’s Encrypt (ACME), negotiate HTTP/2/3 for modern browsers,
apply security headers, and forward traffic to one or more backends. You’ll create a static
configuration (/etc/traefik/traefik.yml) and a dynamic file provider
(/etc/traefik/dynamic/site.yml) that define routers, middlewares, and services.

Why Traefik? It’s lightweight, supports automatic certificates, hot-reload for configuration,
and first-class HTTP/3 support. For deeper reference see the official docs at
doc.traefik.io/traefik.

Prerequisites

• Linux distros: Ubuntu/Debian, RHEL/Rocky/CentOS Stream/Fedora, Arch/Manjaro, openSUSE/SLE.
• Networking: DNS A/AAAA for your domain must point to this server. Open 80/tcp (ACME challenge) and 443/tcp (HTTPS).
• Variables you’ll reuse: DOMAIN, EMAIL, BACKEND1_IP, BACKEND2_IP, BACKEND_PORT.

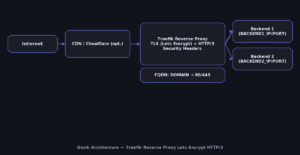

Quick Architecture

Install / Setup

Install Traefik from your distribution repositories. The service runs as traefik and listens on ports 80/443
that we’ll define in the static config. After installation, confirm the version to ensure the binary is available.

Ubuntu/Debian

sudo apt update
sudo apt -y install traefik
traefik version

RHEL/Rocky/CentOS Stream/Fedora

sudo dnf -y install traefik
traefik version

Arch/Manjaro

sudo pacman -Syu --noconfirm traefik
traefik version

openSUSE/SLE

sudo zypper refresh
sudo zypper install -y traefik
traefik version

Base Configuration

You’ll create two files:

1. /etc/traefik/traefik.yml — the static configuration that defines entrypoints (ports), log levels,
   the ACME (Let’s Encrypt) resolver, and enables the file provider.
2. /etc/traefik/dynamic/site.yml — the dynamic configuration with a security‑headers middleware,
   a router that matches Host($DOMAIN) and terminates TLS, and a load‑balanced service pointing to your backends.

HTTP/3 is enabled on the websecure entrypoint. ACME stores certificates in /var/lib/traefik/acme.json (permission 600).

# Variables
export DOMAIN="example.com"
export EMAIL="[email protected]"
export BACKEND1_IP="10.0.0.21"
export BACKEND2_IP="10.0.0.22"
export BACKEND_PORT="8080"

# Create directories
sudo install -d -m 0755 /etc/traefik /etc/traefik/dynamic /var/lib/traefik

# Static configuration (/etc/traefik/traefik.yml)
sudo tee /etc/traefik/traefik.yml >/dev/null <<'YAML'
entryPoints:
  web:
    address: ":80"
  websecure:
    address: ":443"
    http:
      tls: {{}}
    http3: true

api:
  dashboard: true

log:
  level: INFO

accessLog: {{}}

certificatesResolvers:
  letsencrypt:
    acme:
      email: ${{EMAIL}}
      storage: /var/lib/traefik/acme.json
      httpChallenge:
        entryPoint: web

providers:
  file:
    directory: /etc/traefik/dynamic
    watch: true
YAML

# Dynamic config (/etc/traefik/dynamic/site.yml)
sudo tee /etc/traefik/dynamic/site.yml >/dev/null <<'YAML'
http:
  middlewares:
    sec-headers:
      headers:
        frameDeny: true
        contentTypeNosniff: true
        referrerPolicy: "strict-origin-when-cross-origin"
        permissionsPolicy: "camera=(),geolocation=(),microphone=()"

  routers:
    site:
      rule: "Host(`${{DOMAIN}}`)"
      entryPoints: ["websecure"]
      service: app
      tls:
        certResolver: letsencrypt
      middlewares: ["sec-headers"]

  services:
    app:
      loadBalancer:
        passHostHeader: true
        healthCheck:
          path: "/_health"
          interval: "10s"
        servers:
          - url: "http://${{BACKEND1_IP}}:${{BACKEND_PORT}}"
          - url: "http://${{BACKEND2_IP}}:${{BACKEND_PORT}}"
YAML

sudo touch /var/lib/traefik/acme.json
sudo chmod 600 /var/lib/traefik/acme.json
sudo systemctl enable --now traefik

Reload/Enable & Health Checks

Reload picks up changes; restart if reload fails due to syntax errors. Verify ports and test HTTP then HTTPS.

sudo systemctl reload traefik || sudo systemctl restart traefik
sudo journalctl -u traefik -f
ss -tulpen | grep -E ':80|:443'
curl -I http://$DOMAIN
curl -I https://$DOMAIN

Security / Hardening

Expose only required ports using the tool that matches your OS:

• UFW — Ubuntu/Debian
• firewalld — RHEL/Rocky/CentOS Stream/Fedora/openSUSE/SLE

# UFW (Ubuntu/Debian)
sudo ufw allow 80/tcp
sudo ufw allow 443/tcp
sudo ufw reload
sudo ufw status

# firewalld (RHEL/Rocky/Fedora/openSUSE/SLE)
sudo firewall-cmd --permanent --add-service=http
sudo firewall-cmd --permanent --add-service=https
sudo firewall-cmd --reload
sudo firewall-cmd --list-all

Systemd hardening reduces attack surface by limiting capabilities and file access.

sudo install -d -m 0755 /etc/systemd/system/traefik.service.d
sudo tee /etc/systemd/system/traefik.service.d/override.conf >/dev/null <<'OVR'
[Service]
AmbientCapabilities=CAP_NET_BIND_SERVICE
CapabilityBoundingSet=CAP_NET_BIND_SERVICE
NoNewPrivileges=true
PrivateTmp=true
ProtectHostname=true
ProtectKernelLogs=true
ProtectSystem=full
ReadWritePaths=/etc/traefik /var/lib/traefik /var/log
OVR

sudo systemctl daemon-reload
sudo systemctl restart traefik

SELinux (RHEL/Fedora): if backends are blocked, allow web daemons to connect out:
setsebool -P httpd_can_network_connect 1.

Performance & Optimization

Use these practical tweaks:

1. HTTP/3/QUIC: already enabled; browsers upgrade automatically. No extra client changes required.
2. Static asset caching: add a middleware to return a long‑lived Cache-Control header for assets; attach it to the router.
3. Compression: prefer enabling gzip/zstd in the backend app; Traefik forwards compressed responses as‑is.
4. Logging overhead: keep log.level at INFO in production; reduce accessLog retention if storage is tight.

# /etc/traefik/dynamic/site.yml — add and attach:
http:
  middlewares:
    static-cache:
      headers:
        customResponseHeaders:
          Cache-Control: "public, max-age=2592000, immutable"

  routers:
    site:
      middlewares:
        - sec-headers
        - static-cache

Backup & Restore

Back up static/dynamic configs and ACME state. On restore, stop Traefik, extract files, fix permissions on acme.json, then restart the service.

Backup (create archive + checksum)

sudo tar -C / -czf /root/traefik-backup-$(date +%F).tgz   etc/traefik var/lib/traefik --numeric-owner
sha256sum /root/traefik-backup-$(date +%F).tgz

Restore (stop service, extract, fix perms, start)

BACKUP="/root/traefik-backup-YYYY-MM-DD.tgz"
sudo systemctl stop traefik
sudo tar -C / -xzf "$BACKUP"
sudo chown -R root:root /etc/traefik
sudo chmod 600 /var/lib/traefik/acme.json || true
sudo systemctl start traefik && sudo systemctl status --no-pager traefik

Troubleshooting (Top issues)

No certificates issued — Port 80 blocked or DNS mismatch.

ss -tulpen | grep ':80'
dig +short A $DOMAIN; dig +short AAAA $DOMAIN
sudo journalctl -u traefik --since "10 min ago"

502/504 errors — Backends unhealthy or wrong port/path.

curl -sS http://$BACKEND1_IP:$BACKEND_PORT/_health
curl -sS http://$BACKEND2_IP:$BACKEND_PORT/_health

Port conflict — Another web server already listening.

sudo ss -tulpen | grep -E ':80|:443'
sudo systemctl disable --now nginx apache2 httpd || true
sudo systemctl restart traefik

Key Takeaways & Next Steps

• Traefik Reverse Proxy Lets Encrypt HTTP/3 provides automatic HTTPS and modern transport with minimal config.
• Harden with firewall + systemd; consider SELinux on RHEL/Fedora.
• Add rate limiting, OAuth/JWT, per‑route middlewares, and central logging next.
